Hebei Ruijie Pipe Industry Co., Ltd. is one of the most reliable manufacturers and suppliers of ppr water heater union tee in China. With abundant experience, we warmly welcome you to buy high quality ppr water heater union tee for sale here from our factory. Also, pricelist and free sample are available.

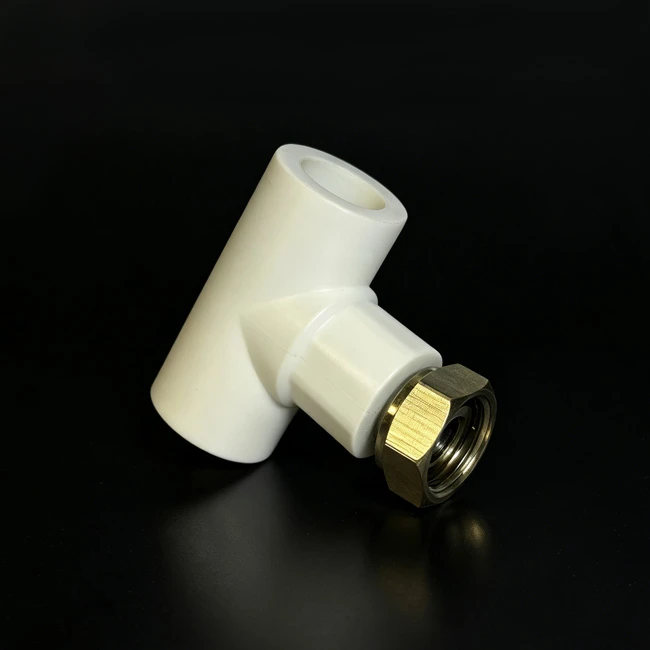

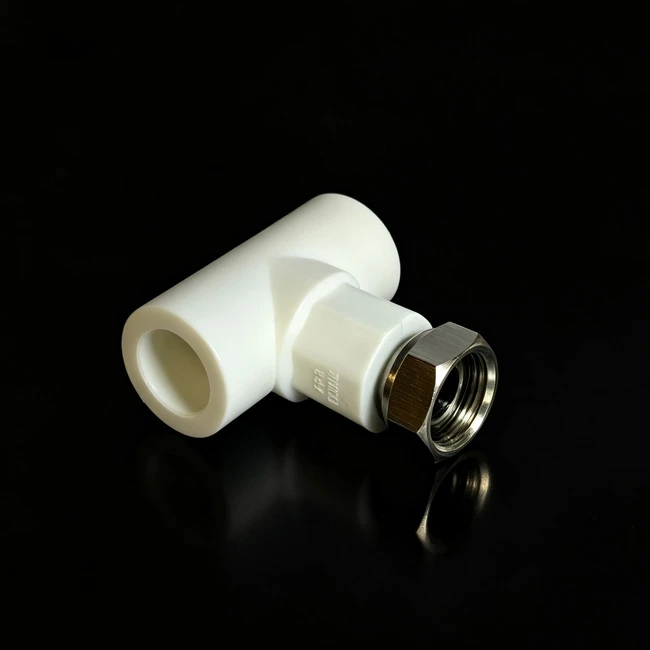

The PPR water heater union tee is specifically designed for solar water heater piping systems. The two Φ20 socket ends are hot melt welded to PPR pipes, while the side R1/2" brass union connects directly to the solar water heater interface. The detachable union allows future maintenance or replacement of the solar unit without cutting or damaging the already fused PPR pipeline.
Product Advantages
Removable brass union structure enables repeated disassembly and reassembly; solar unit servicing requires no pipe cutting.
EPDM flat gasket seal provides reliable performance under alternating hot and cold conditions, reducing leakage risk.
One piece injection molded PPR body with wall thickness complying with national standards, resistant to thermal cycling and cracking.
T shaped internal flow channel with smooth transitions minimizes flow resistance.
Developed specifically for solar water heater applications, matching standard R1/2" solar equipment interfaces.
Applications
Residential solar water heater piping connections
Domestic cold and hot water branch distribution
Small household water heater retrofitting
Not suitable for industrial steam systems, high pressure or high temperature special conditions.
After Sales Service
Each batch undergoes visual inspection and random sealing tests prior to shipment. Under correct installation and non abnormal external force, quality related issues will be addressed.
Technical support is provided for installation guidance and product selection inquiries.
Damage caused by improper handling, incorrect hot melt operation, overtightening causing thread fracture, or inaccessible buried installations is excluded from warranty coverage.
faq
Q:1.Should thread seal tape be applied on the union flat face?
A:Absolutely not. Do not apply PTFE tape on the union gasket sealing face. Tape should only be wound on the male threads of the solar equipment connector. Placing tape on the flat face will cause leakage.
Q:2.Can this fitting operate continuously at 95°C?
No. The long term design temperature for PPR per national standards is 70°C. 95°C is only permissible as a short term peak. Prolonged exposure to high temperatures accelerates rubber gasket aging.
Q:3.Can the union be directly embedded in walls without access?
A:It is strongly recommended not to fully embed the union section. An inspection opening must be reserved for future disassembly and maintenance.
Q:4.Should the brass nut be removed before hot melt welding?
A:Yes. The brass nut and EPDM gasket must be removed before hot melting. High heat will damage the rubber seal, leading to subsequent leakage.
Installation Instructions
Set the hot melt tool to 260°C, standard PPR working temperature.
Before melting, remove the brass nut and rubber gasket. Then proceed with socket fusion on the tee's socket ends.
After welding, allow the fitting to cool completely to room temperature before reinstalling the gasket and nut.
Ensure the gasket sits flat, free of scratches or nicks. Tighten the nut evenly; do not overtighten to avoid thread stripping or cracking.
After completing all piping, perform a hydrostatic pressure test at 1.0 to 1.2 MPa for at least 30 minutes. Confirm no leaks before closing the system.
Factory Advantages
In house injection molding workshop with dedicated molds for this product; size 20×R1/2" is directly mass produced.
All fittings made from 100% virgin PPR material; batch samples retained; no recycled materials used.
Supports neutral white box packaging and OEM custom branding.
Accepts international bulk orders; minimum order quantity negotiable.
Each batch undergoes visual and sealing sampling inspections.
Storage Requirements
Store in a cool, dry warehouse away from direct sunlight.
Keep away from heat sources and open flames; prolonged UV exposure accelerates rubber gasket degradation.
Avoid stacking against sharp objects to protect sockets and threads.
Do not store outdoors for extended periods; prefer original sealed packaging for storage.
